LimeSurvey Integration

PRISM Studio provides a complete, bidirectional integration with LimeSurvey — from designing questionnaires and exporting them as ready-to-use LimeSurvey surveys, to importing response data and preserving all system metadata in a BIDS-compatible structure.

Supported LimeSurvey Versions

PRISM Studio supports LimeSurvey versions 3.x, 5.x, and 6.x. The integration handles version-specific differences automatically:

Feature	LS 3.x	LS 5.x	LS 6.x
Basic import/export	Yes	Yes	Yes
Multi-language support	Yes	Yes	Yes (localization tables)
Question attributes	Yes	Yes	Yes
Timing data extraction	Yes	Yes	Yes
Per-question timing	No	Yes	Yes
Metadata preservation	Yes	Yes	Yes

End-to-End Workflow

The typical workflow for using LimeSurvey with PRISM looks like this:

1. Select templates in PRISM Studio
       ↓
2. Customize & configure survey settings
       ↓
3. Export as .lss file
       ↓
4. Import .lss into LimeSurvey
       ↓
5. Adjust settings in LimeSurvey (if needed)
       ↓
6. Activate survey & collect data
       ↓
7. Export responses from LimeSurvey (.lsa or .csv)
       ↓
8. Import responses into PRISM Studio
       ↓
9. PRISM creates BIDS-compatible dataset

Each step is described in detail below.

Step 1: Selecting Templates

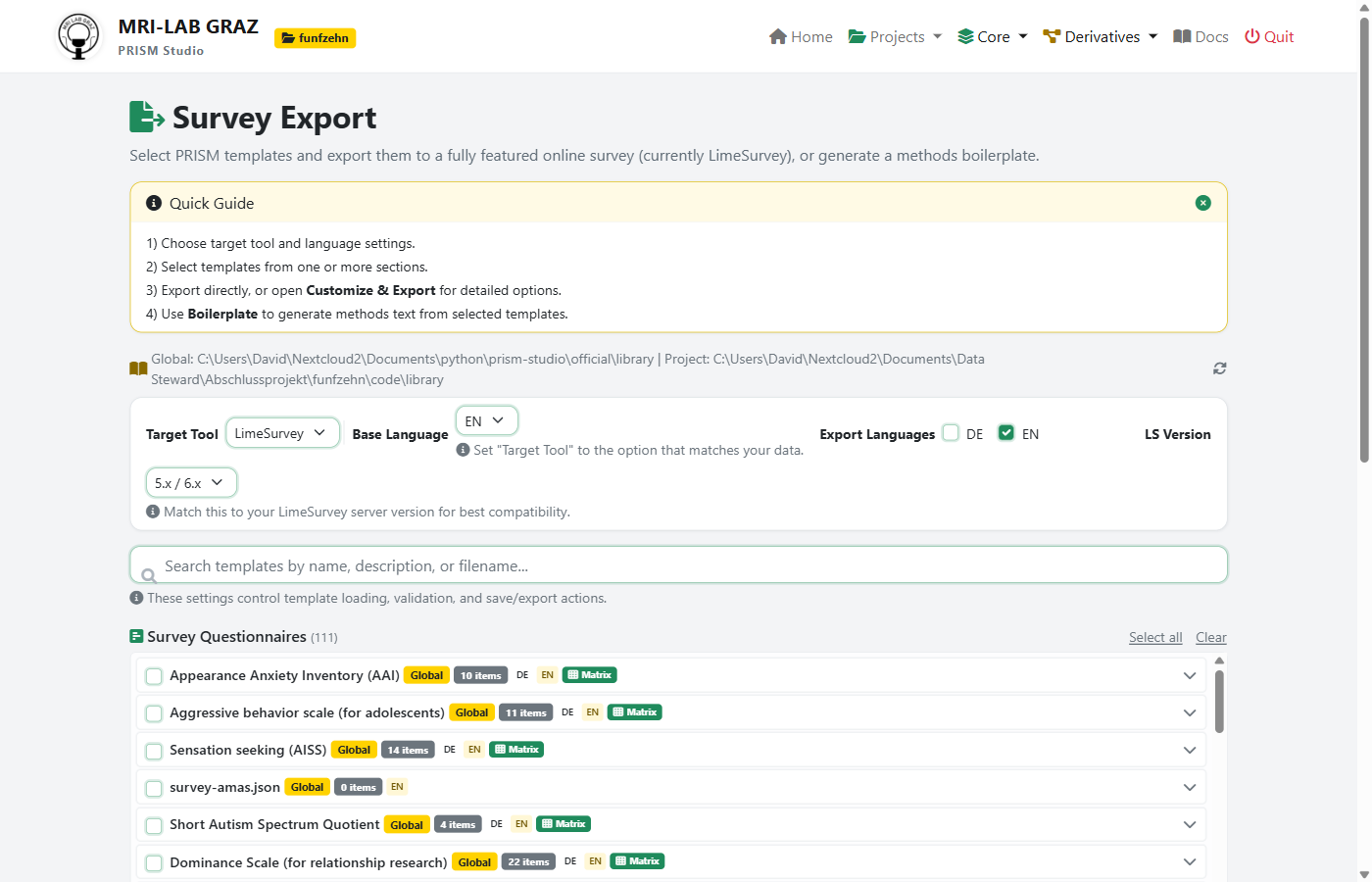

Navigate to Derivatives > Survey Export to select questionnaires from the PRISM template library.

Configure the export settings:

• Target Tool: LimeSurvey (default)

• Base Language: The primary survey language (EN or DE)

• Export Languages: Check additional languages for multilingual surveys

• LS Version: Match this to your LimeSurvey server version (5.x/6.x recommended)

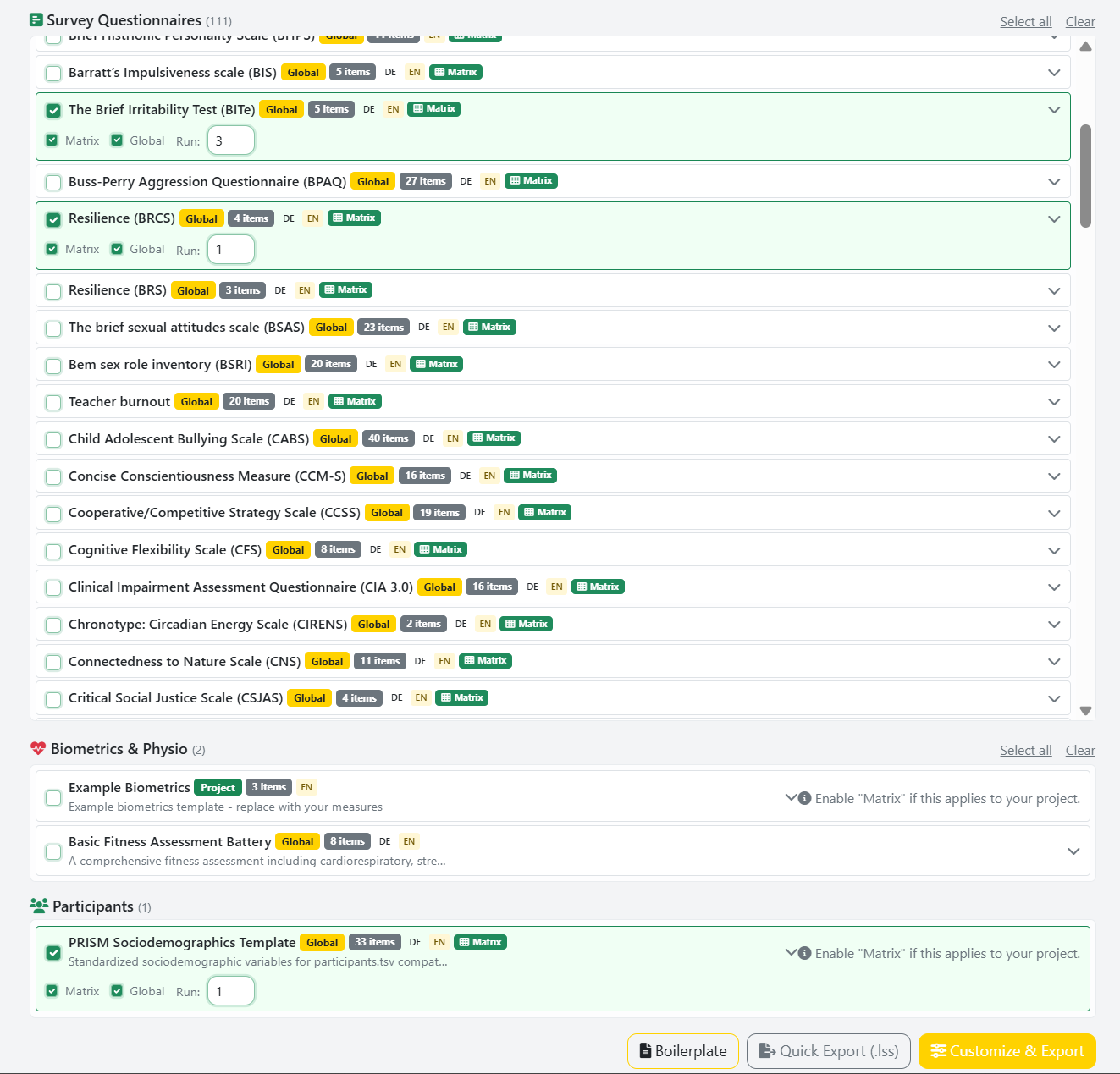

Select templates by checking one or more questionnaires from the list. For each selected template, you can set the Run number (for repeated administrations, e.g., pre/post design):

Each template shows:

• Item count and available languages (DE/EN badges)

• Question type (Matrix, List, etc.)

• Source (Global library or Project library)

Tip

Use the search bar to filter templates by name, abbreviation, or description.

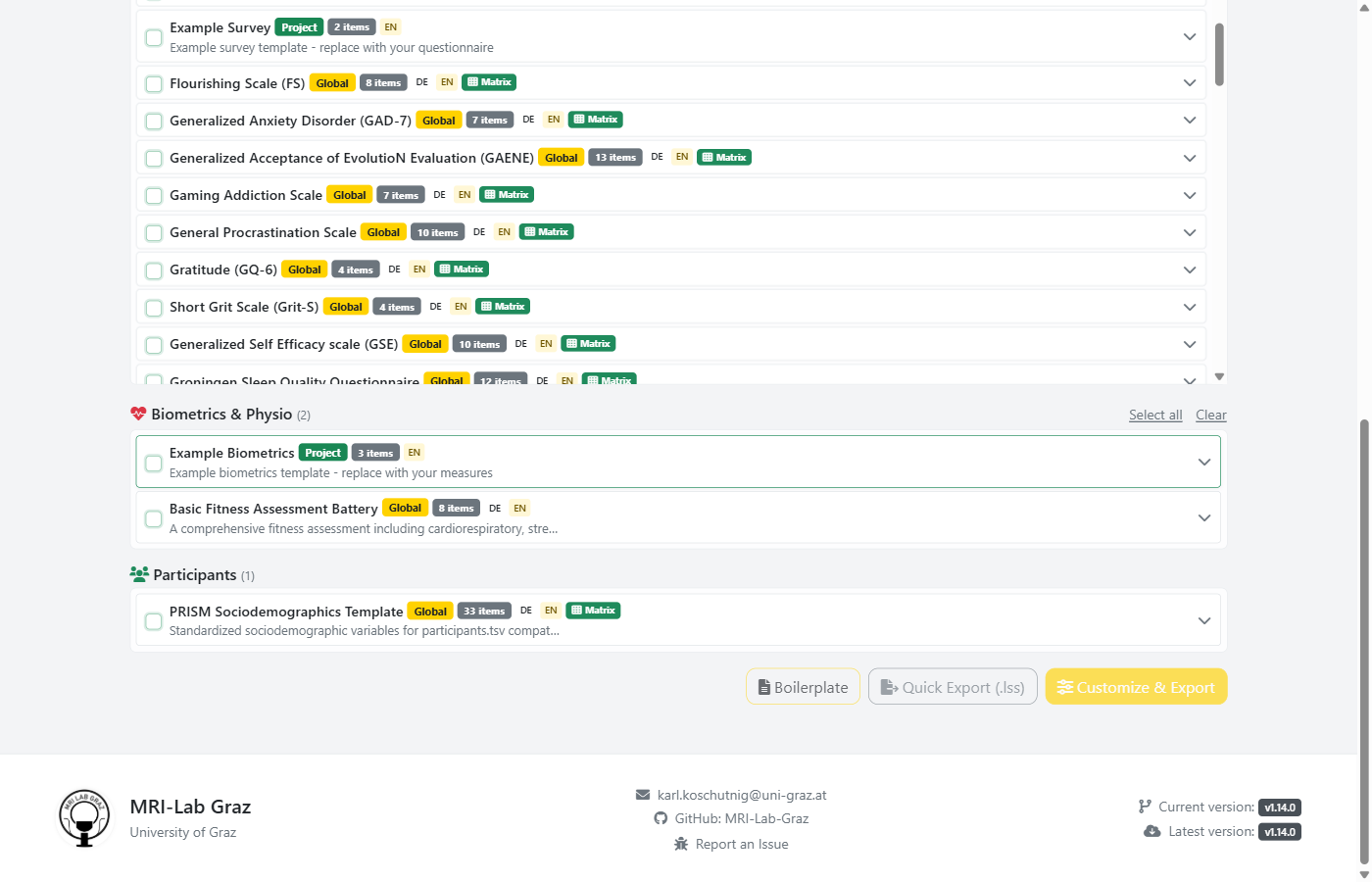

Step 2: Customize & Export

You have two export options:

• Quick Export (.lss): Downloads the .lss file immediately with default settings

• Customize & Export: Opens the Survey Customizer for detailed configuration

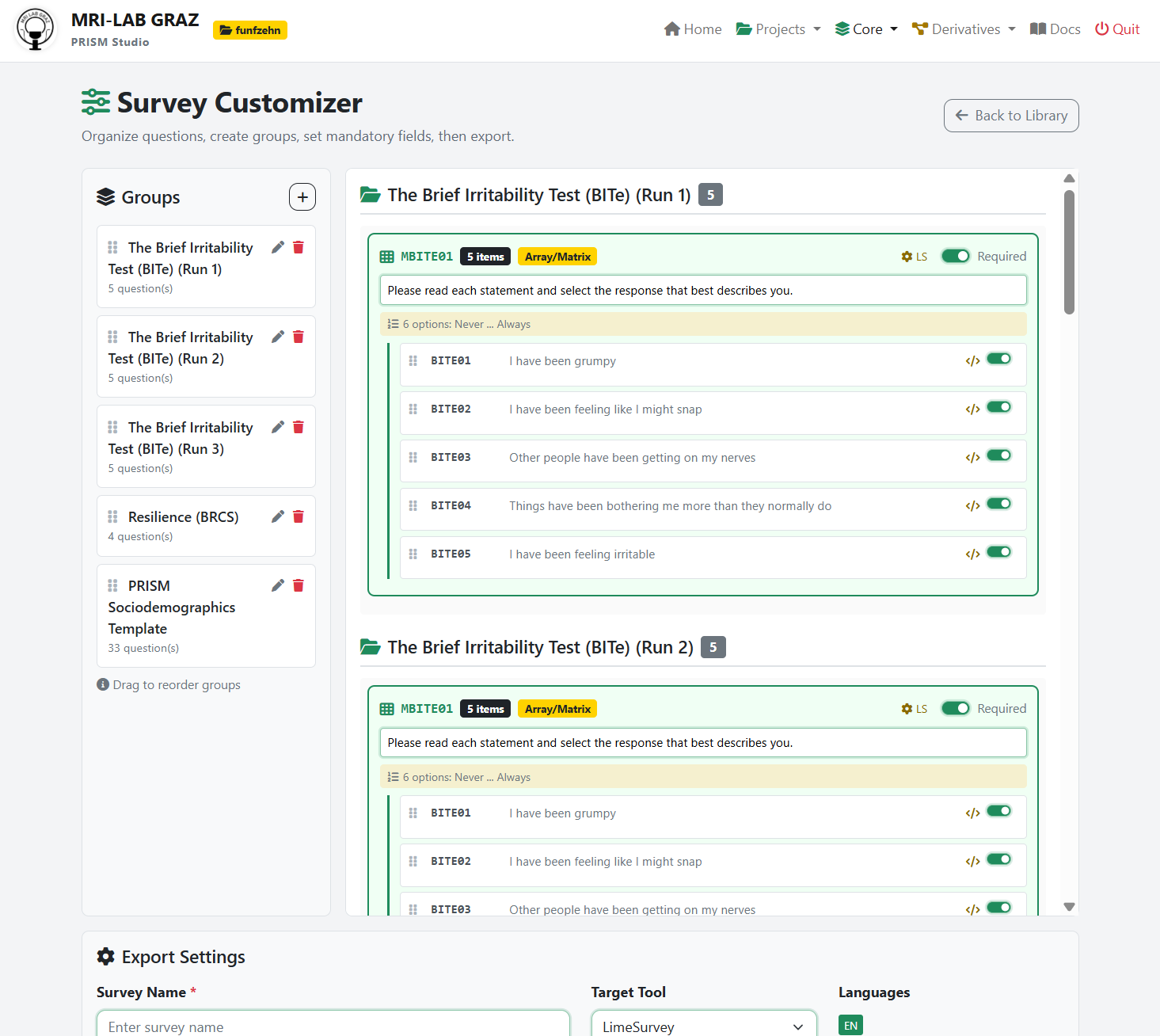

The Survey Customizer

The Customizer is the recommended path for production surveys. It provides full control over the survey structure and LimeSurvey-specific settings:

Question Group Management

• Reorder groups via drag-and-drop on the left panel

• Add/rename/remove question groups (pencil and trash icons)

• Reorder questions within each group

• Run numbers are shown per group (e.g., “Run 1”, “Run 2”, “Run 3” for repeated measures)

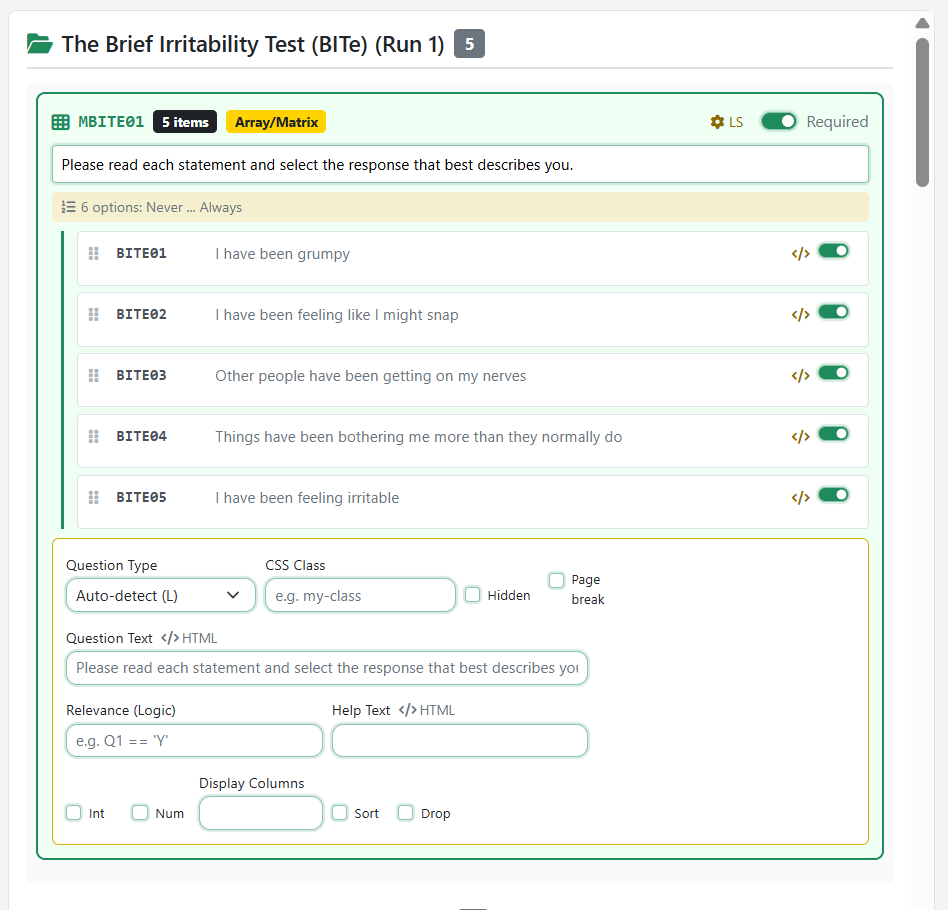

Per-Question Settings

Click the gear icon (LS) on any question to expand the LimeSurvey tool settings panel:

For each question, you can configure LimeSurvey-specific properties:

Setting	Description	When to use
Question Type	Override auto-detected type (Radio, Dropdown, Matrix, Numerical, Text, etc.)	When you want a dropdown instead of radio buttons
Mandatory	Mark question as required	For questions that must be answered
Relevance	Conditional display logic (e.g., Q02 == 'Y')	Show/hide questions based on previous answers
Hidden	Hide question from respondent	For calculated fields or metadata
Input Width	Control display width (1-12 grid units)	For numerical or text inputs
Validation Min/Max	Enforce numeric range	For age, rating scales, etc.
CSS Class	Custom styling	For visual emphasis or grouping
Page Break	Force a page break before this question	To control pagination

Matrix Grouping

When Matrix Mode is enabled (default), questions with identical answer scales are automatically grouped into a matrix/array table in LimeSurvey. This creates a compact layout where respondents see all items with the same scale in one table.

• Matrix Mode: Toggle on/off for matrix grouping

• Global Matrix: Group all matching questions (not just consecutive ones)

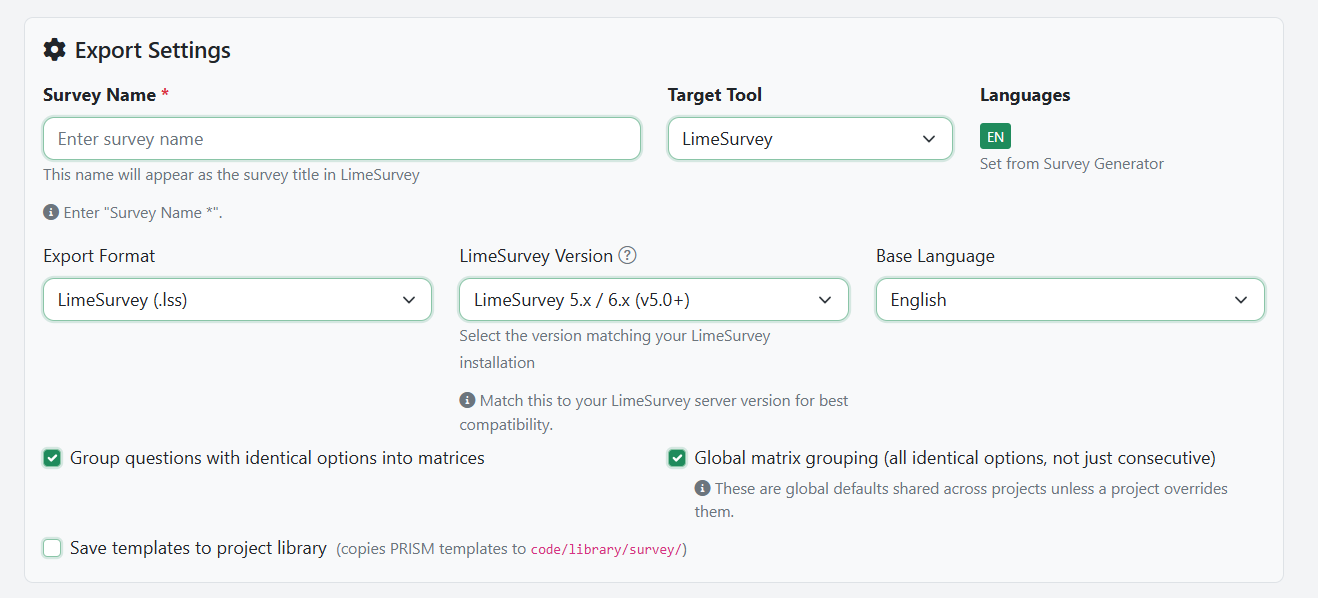

Export Settings

At the bottom of the Customizer, configure the survey name, target tool, and language options:

Survey-Level Settings

The Customizer also provides survey-wide LimeSurvey settings in expandable accordion sections:

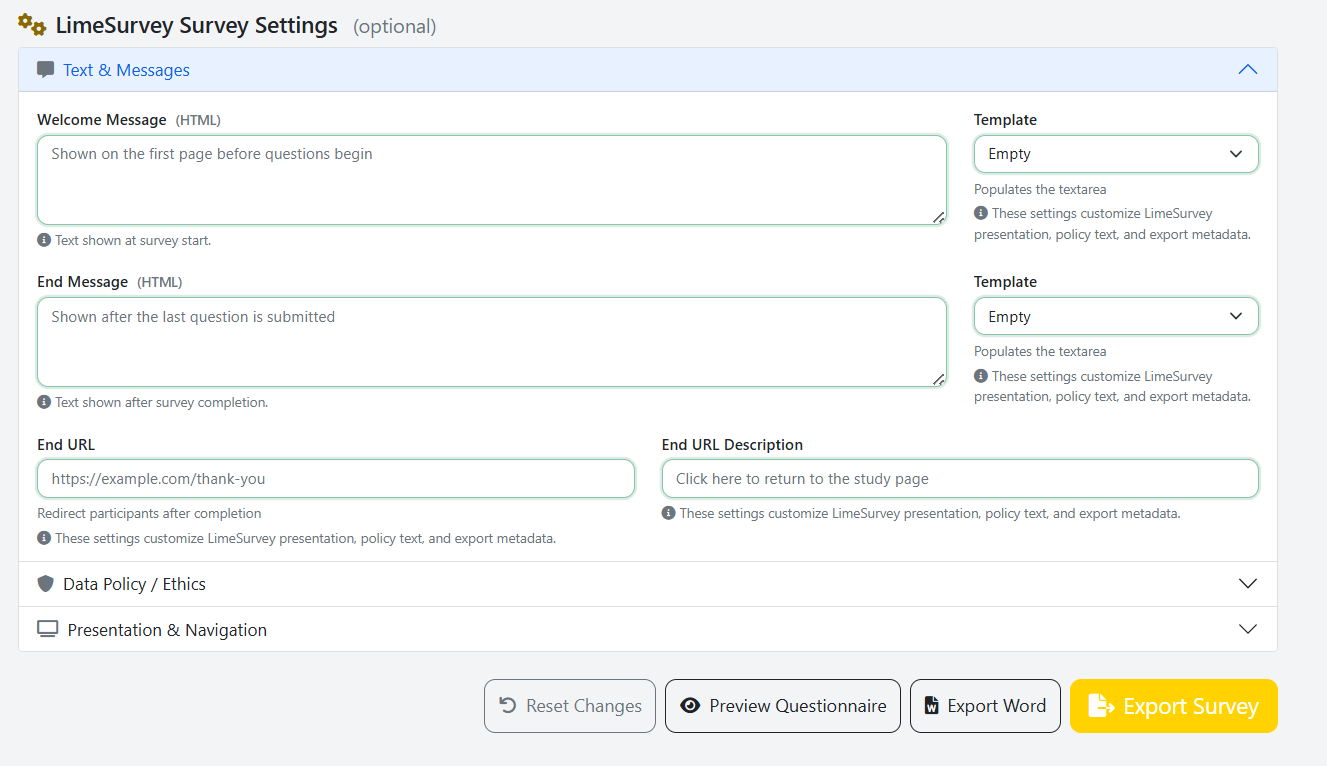

Welcome & End Messages:

• Welcome text with template dropdown (Standard, Academic, Brief)

• End/thank-you text with template dropdown

• End URL for redirect after completion

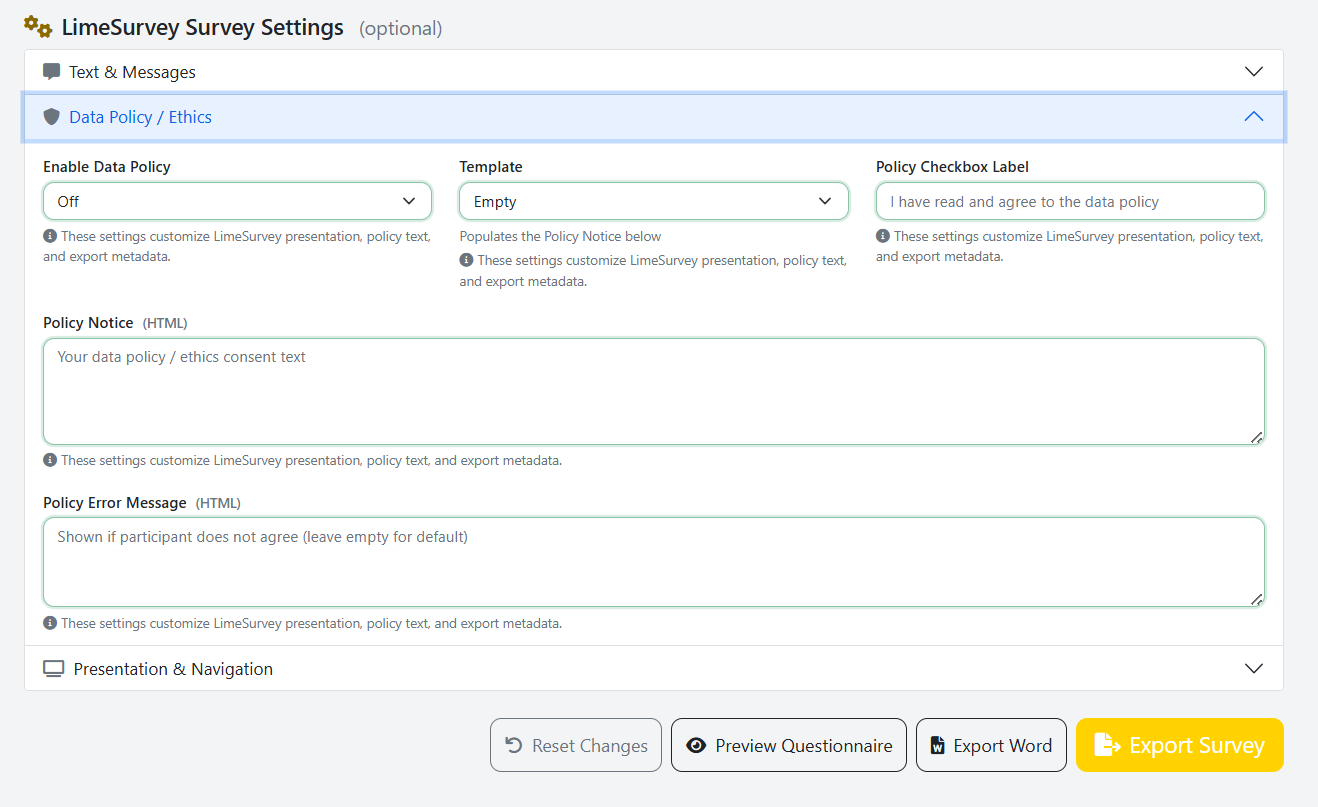

Data Policy & Consent:

• Data policy display mode (off, inline, popup)

• Consent text with templates (Standard, GDPR, Anonymous, Longitudinal, Minimal)

• Error message for declined consent

• Checkbox label text

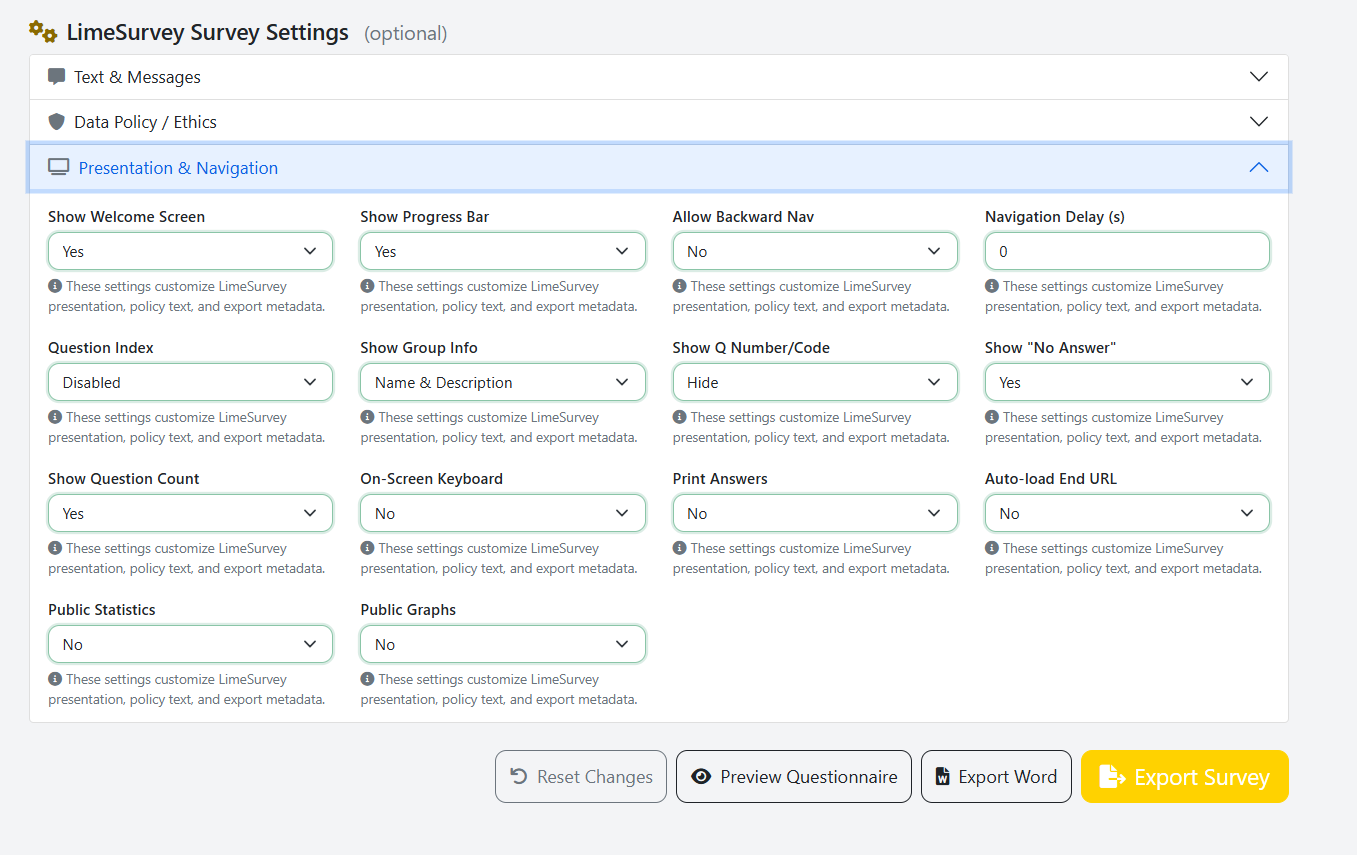

Navigation & Presentation:

• Navigation delay between pages

• Question index display (disabled, incremental, full)

• Group information display

• Question numbering style

• “No answer” option visibility

• Progress bar display

• Back button availability

• Keyboard navigation toggle

Privacy & Statistics:

• Print answers option

• Public statistics / graphs

• Auto-redirect after completion

Important

Save timings should be enabled if you want timing data in your PRISM dataset. This is configured in LimeSurvey itself (Notifications & Data settings), not in the Customizer.

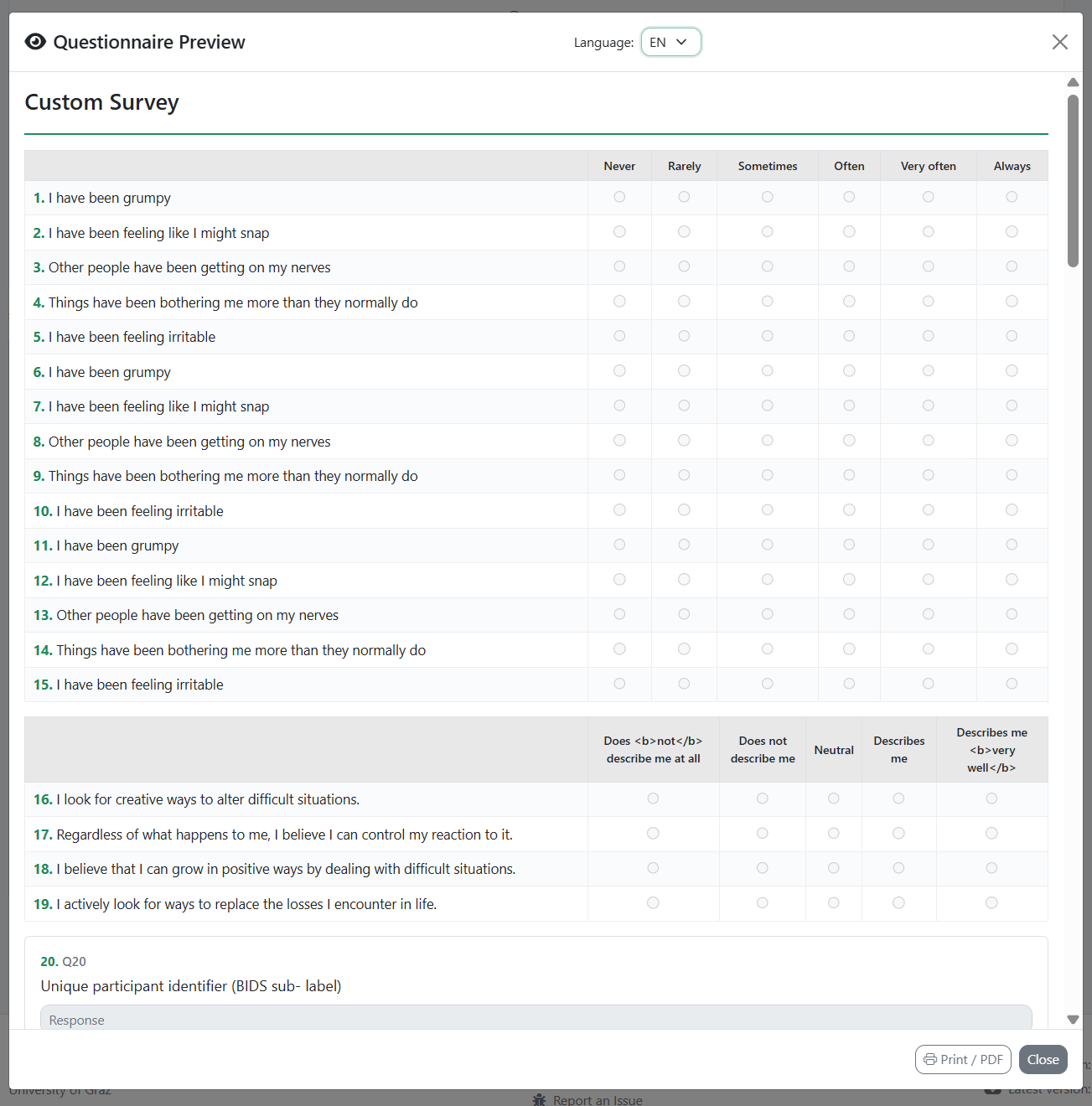

Preview Before Export

Click Preview Questionnaire in the Customizer to see a full preview of the assembled survey in a modal. This shows the questionnaire with matrix grouping and all enabled questions, helping you verify the layout before exporting:

Exporting the .lss File

Use the action buttons at the bottom of the Customizer:

Click Export Survey to generate and download the .lss file. If “Save to project library” is checked, the selected templates will also be saved to your project’s local library.

Step 3: Import into LimeSurvey

1. Log in to your LimeSurvey instance

2. Click Create Survey (or + Create new survey)

3. Select Import and upload the .lss file

4. LimeSurvey will show a summary of imported questions and groups

5. Click Import to confirm

Tip

The imported survey will be in inactive state. Review all settings before activating.

Step 4: Adjustments in LimeSurvey

After importing, you may want to configure settings that are not part of the .lss export:

Recommended Settings to Check

Setting	Location in LimeSurvey	Why
Date stamps	Notifications & Data > Date stamp	Required for timing analysis
Save timings	Notifications & Data > Save timings	Required for response time analysis
IP addresses	Notifications & Data > Save IP address	Optional, privacy consideration
Token-based access	Survey Participants	For controlled access or longitudinal designs
Email templates	Email templates tab	For invitation/reminder emails
Survey theme	General settings > Theme	Visual appearance
Response persistence	Notification & Data	Allow participants to save and resume

Testing the Survey

Before activating:

1. Click Preview to test the survey as a respondent

2. Verify question order, matrix grouping, and conditional logic

3. Check all language versions if multilingual

4. Test on different devices (desktop, tablet, mobile)

Step 5: Data Collection

1. Activate the survey in LimeSurvey

2. Distribute the survey URL to participants

3. Monitor responses via LimeSurvey’s response panel

Note

Once a survey is activated, you cannot add or remove questions. Make all structural changes before activation.

Step 6: Export from LimeSurvey

After data collection is complete:

Recommended: Export as .lsa Archive

1. Go to Display/Export > Survey archive (.lsa)

2. Click Export

3. The .lsa file contains the survey structure, all responses, and timing data in a single archive

Alternative: Export as CSV

1. Go to Responses > Export > Export results

2. Format: CSV

3. Heading format: Question code (important — do not use full question text)

4. Response format: Answer codes (recommended for analysis)

5. Include timing data if available

Warning

Always use Question code as the heading format. Using full question text will break the column-to-template mapping during PRISM import.

Step 7: Import Responses into PRISM

From .lsa Archive (Recommended)

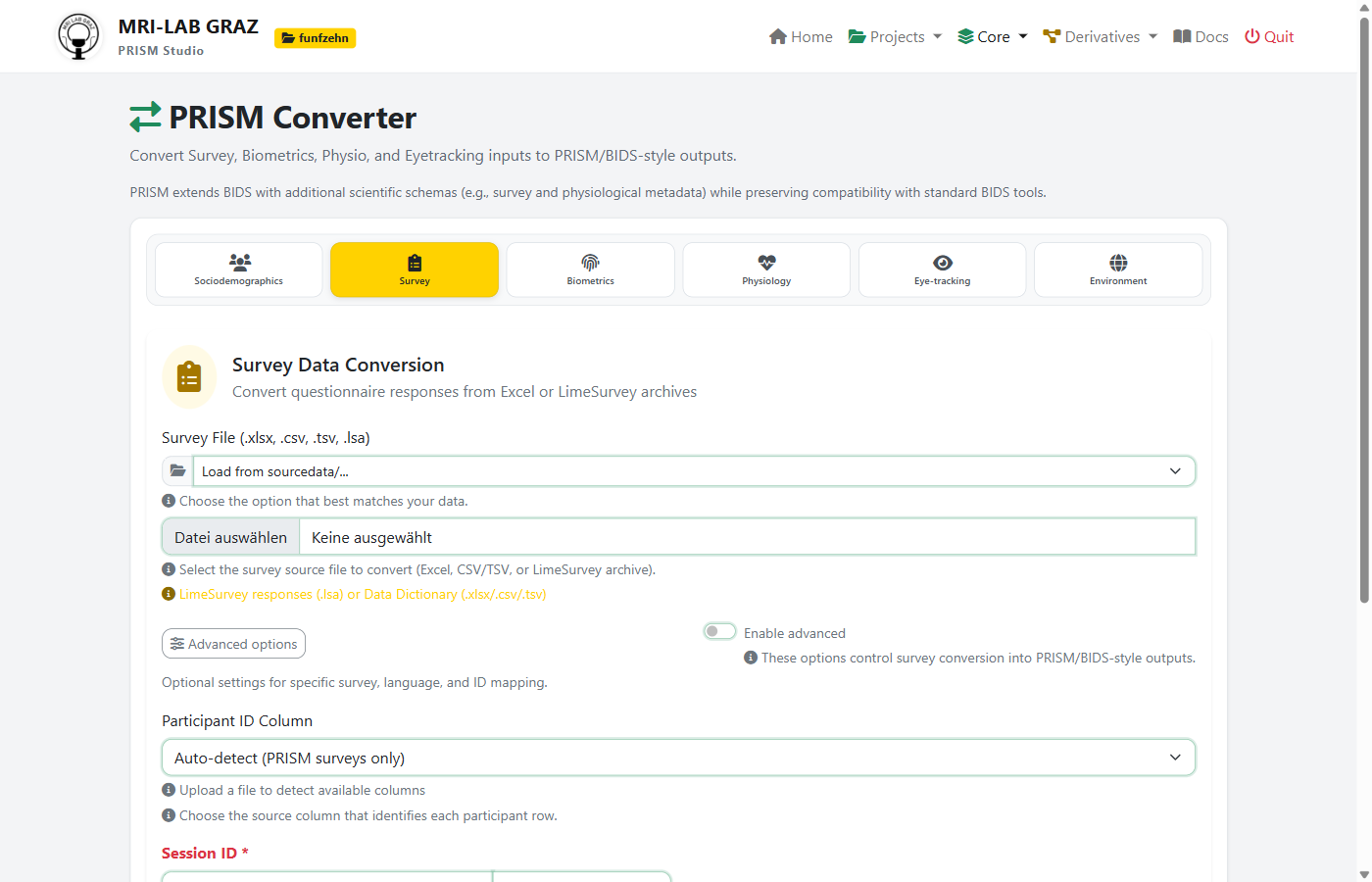

1. Navigate to Core > Converter > Survey tab

2. Upload the .lsa file (or select from sourcedata dropdown)

3. PRISM automatically:

   • Extracts the survey structure from the archive

   • Matches question groups against the template library

   • Detects participant ID and session columns

4. Configure:

   • Participant ID Column: Auto-detected, or select manually

   • Session ID: Enter session identifier (e.g., 1, baseline, post)

5. Click Preview (Dry-Run) to verify the mapping

6. Click Convert to generate the BIDS-compatible output

From CSV/Excel Export

1. Upload the .csv or .xlsx file in the Survey converter

2. Select the matching template(s) from the library

3. Map the participant ID column

4. Proceed with Preview and Convert

What PRISM Creates

For each participant and session, PRISM generates:

Survey data files:

sub-001/ses-1/survey/
  sub-001_ses-1_task-gad7_survey.tsv     # Response data
  sub-001_ses-1_task-gad7_survey.json    # Metadata sidecar

LimeSurvey system variable files (if system columns detected):

sub-001/ses-1/survey/
  sub-001_ses-1_tool-limesurvey_survey.tsv   # System metadata
  sub-001_ses-1_tool-limesurvey_survey.json  # Field descriptions

Run Number Handling

When the same questionnaire is administered multiple times (e.g., pre/post design), PRISM automatically detects run numbers from question codes (e.g., PANAS01run02) and generates separate files:

sub-001_ses-1_task-panas_run-01_survey.tsv
sub-001_ses-1_task-panas_run-02_survey.tsv

System Variables (Metadata Preservation)

When converting LimeSurvey data, PRISM automatically separates platform metadata from questionnaire responses and writes them to dedicated tool-limesurvey files.

What Gets Separated

Core system columns (always present in LimeSurvey response table):

Column	Description
id	Response ID
submitdate	Submission timestamp
lastpage	Last page viewed
startlanguage	Language at survey start
completed	Completion flag
seed	Randomization seed
token	Participant access token

Optional columns (when enabled in LimeSurvey Notifications & Data settings):

Column	Description	Enabled via
startdate	Survey start timestamp	Date stamp
datestamp	Last action timestamp	Date stamp
ipaddr	IP address	Save IP Address
refurl	Referrer URL	Save Referrer URL

Timing columns:

Pattern	Description
interviewtime	Total survey time (seconds)
grouptime{N}	Time per question group (seconds)
questiontime{N}	Time per question (seconds, LS 5+)

Derived Fields

PRISM computes additional fields from the system data:

• SurveyDuration_minutes: Total duration calculated from submitdate - startdate

• CompletionStatus: "complete" if submitdate is present, "incomplete" otherwise

JSON Sidecar

Each tool-limesurvey TSV file is accompanied by a JSON sidecar that documents the fields with descriptions, data types, units, and sensitivity markers (e.g., token and ipaddr are marked as sensitive).

Importing Existing LimeSurvey Templates (.lss)

If you have an existing LimeSurvey survey and want to use it with PRISM:

1. Export the survey structure as .lss from LimeSurvey (Display/Export > Survey structure)

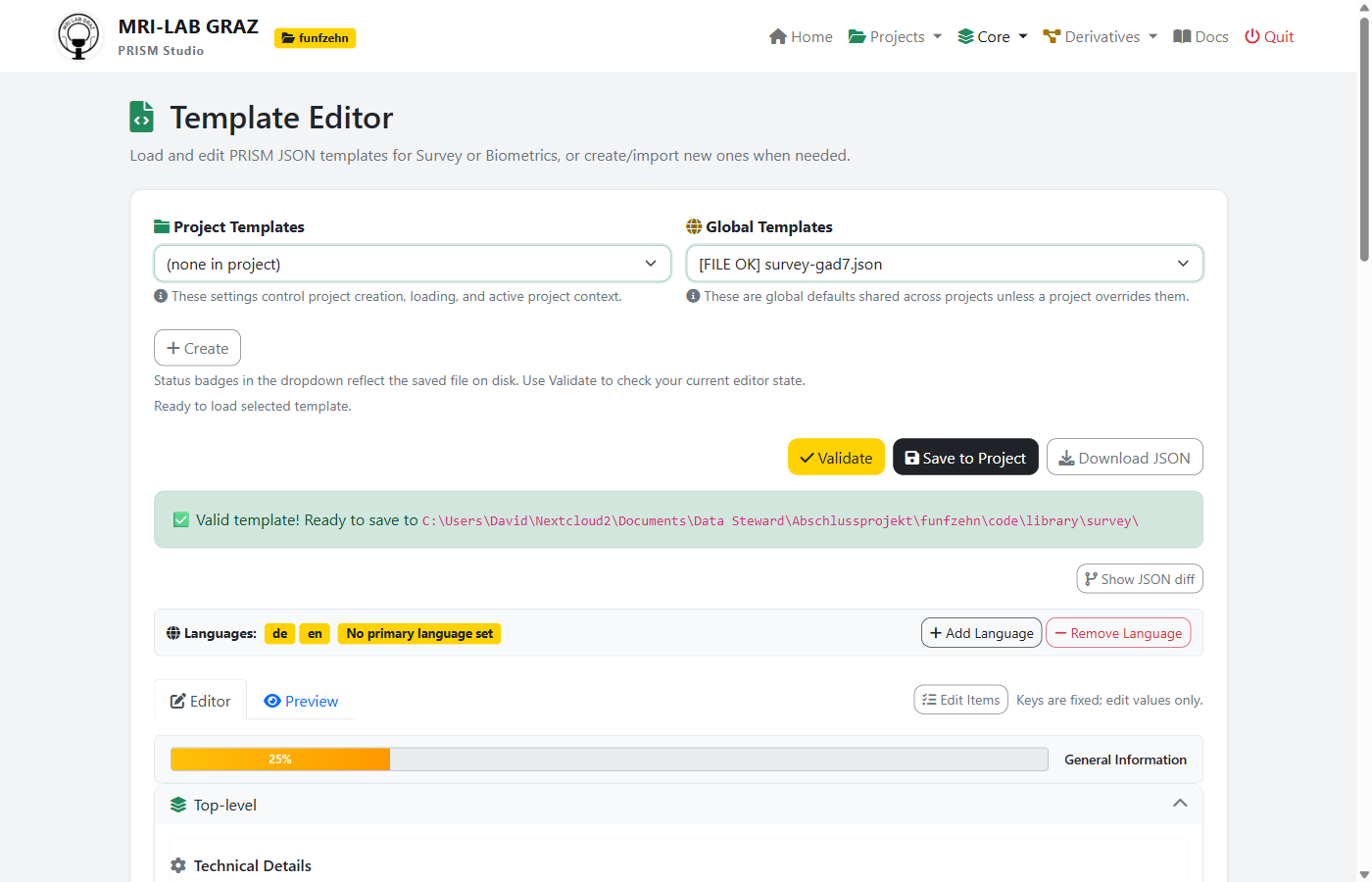

2. In PRISM Studio, navigate to Core > Template Editor

3. Click + Create and select Import from file

4. Upload the .lss file

5. Choose import mode:

   • Combined: All questions in one template

   • Per Group: One template per question group (recommended)

   • Per Question: Individual template per question

Supported Question Types (Import)

LimeSurvey Code	Type	PRISM Mapping
L	List (Radio)	Radio with Levels
!	List (Dropdown)	Dropdown with Levels
F	Array (Flexible)	Items with shared Levels
A, B, C, E	Array variants	Items with implicit Levels
1	Array Dual Scale	Dual-scale items
M	Multiple Choice	Checkbox
S	Short Free Text	Short text
T	Long Free Text	Long text
N	Numerical Input	Numerical
D	Date/Time	Date
R	Ranking	Ranking
G	Gender	Dropdown (M/F)
Y	Yes/No	Radio (Y/N)
X	Text Display	Boilerplate (display only)
*	Equation	Calculated field

Question Type Mapping (Export)

When exporting to LimeSurvey, PRISM automatically maps question types:

PRISM Template	LimeSurvey Type	Notes
Items with Levels (2-10 options)	L - List (Radio)	Default for Likert scales
Items with Levels (>10 options)	! - List (Dropdown)	Auto-converts
Items with identical Levels	F - Array (Matrix)	When matrix mode is enabled
InputType: numerical	N - Numerical Input	With min/max validation
InputType: text (single-line)	S - Short Free Text
InputType: text (multiline)	T - Long Free Text	With configurable rows
InputType: slider	K - Multiple Numerical	With slider appearance
InputType: dropdown	! - List (Dropdown)	Explicit dropdown
InputType: calculated	* - Equation	Hidden calculated field

Code Sanitization

LimeSurvey has strict limits on code lengths. PRISM Studio automatically sanitizes codes during export:

• Question codes: Max 15 characters (safe limit; LS allows 20)

• Answer codes: Max 5 characters

• Subquestion codes: Max 5 characters

Codes are made alphanumeric (no special characters), with collision resolution via incremental suffixes.

Best Practices

Variable Naming

To ensure smooth conversion between PRISM and LimeSurvey:

• Question codes: Use short, alphanumeric codes matching the template item keys (e.g., GAD701, PSS01)

• Subquestion codes: Use simple suffixes (e.g., SQ001, 01)

• Answer codes: Use numeric codes (e.g., 0, 1, 2) rather than text codes

• Avoid special characters in all codes

LimeSurvey Settings for PRISM Compatibility

Enable these settings in LimeSurvey before activating your survey:

Setting	Recommended	Why
Date stamp	On	Enables start/submit timestamps
Save timings	On	Enables per-group and per-question timing
Anonymized responses	Off (or as required)	Token-based tracking for longitudinal studies
Question codes heading	Always use for export	Required for PRISM column mapping

Combining Multiple Questionnaires

To create a multi-questionnaire survey:

1. Use the Survey Export page to assemble multiple templates into one .lss

2. Or in LimeSurvey: export each questionnaire as a Question Group (.lsg) and import into a single survey

3. Each questionnaire should be its own question group for clean separation during re-import

CLI Reference

Import .lss to PRISM template

python app/prism.py convert survey --input survey.lss --library official/library \
    --output /path/to/dataset --session 1

Export PRISM template to .lss

The .lss export is currently only available through the web interface (Survey Export page).

Troubleshooting

Common Issues

Import shows “0 questions”: The .lss file may use an unsupported question type or encoding. Try opening it in a text editor to verify it’s valid XML.

Special characters in exported questions: PRISM Studio sanitizes question codes for LimeSurvey compatibility. Codes longer than 15 characters are truncated, and special characters are removed.

Timing data not appearing: Ensure “Save timings” was enabled in LimeSurvey before data collection started. Timing data is only available if the survey was configured to record it.

System variables missing in output: System variable separation only applies to LimeSurvey-sourced data (detected automatically). If your data was exported as plain CSV without system columns, no tool-limesurvey files will be generated.

Matrix grouping not working as expected: Matrix grouping requires questions with identical answer scales (same codes and labels). Even small differences in scale labels will prevent grouping.

Column mapping errors during import: Ensure LimeSurvey data was exported with Question code as the heading format, not full question text or question ID.
